Medical Manifold Set
Product Features
● It can achieve very precise flow and pressure regulation of various liquids or gases, adapting to the needs of different medical procedures.
● It can connect multiple pipelines simultaneously to achieve orderly transportation and management of multiple fluids.
Structure and material

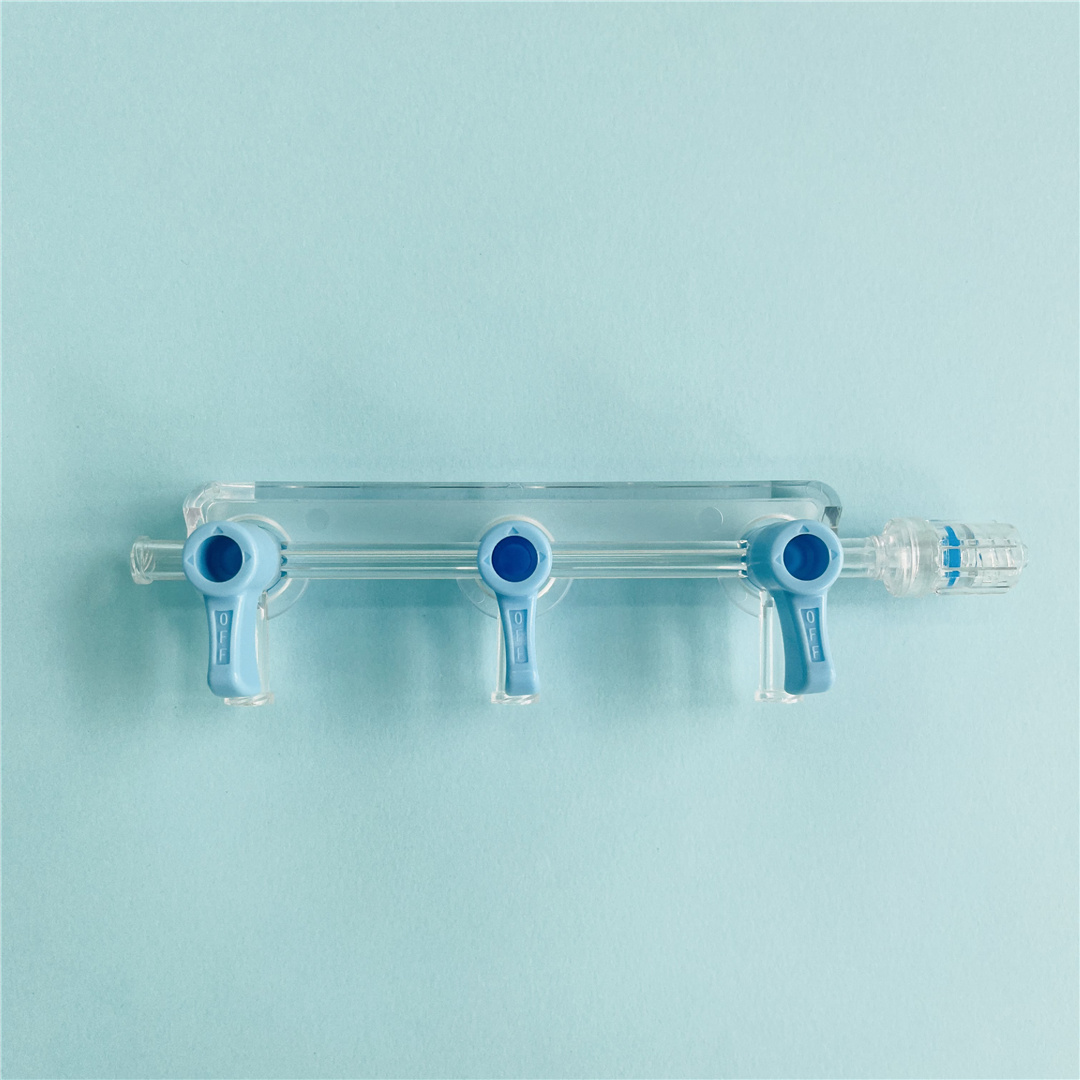

● Manifold sets is composed of manifolds, dose control syringe, infusion sets, connecting tube.

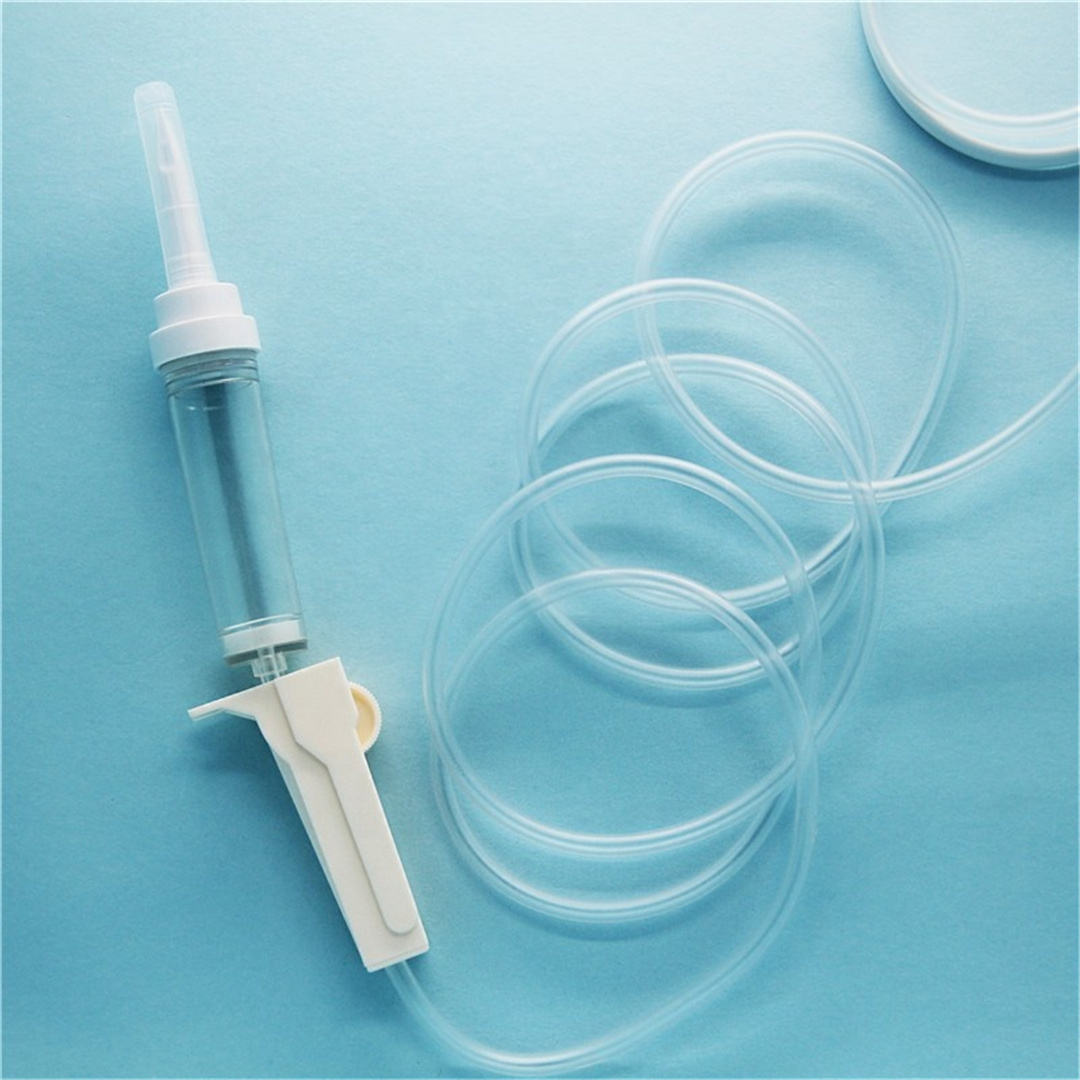

● Manifold, dose control syringe are made of polycarbonate, infusion set is made of polyvinylchloride, connecting tube is made of polyethylene.
Instruction for use
● Connect the connecting tube and infusion sets with manifold and corresponding devices.
● Draw saline with dose control syringe and flush the inner wall of manifold, reserve some saline in the dose control syringe for use.
● Flush the connecting tube and exhaust the air with saline reserved in the dose control syringe, prepare for pressure zero. The manifold shall keep the same level with the heart when exhaust the air.
● Turn the handle for the pressure monitor channel, connect the pressure transducer with atmosphere and adjust it to zero.
● Turn on the contrast medium channel, draw contrast medium and empty the air in the tube.
● Turn off the contrast medium channel, empty the air inside the dose control syringe. Connect the dose control syringe with manifold for use.
● Turn on the contrast medium channel and draw contrast medium for use.
● Turn off the contrast medium channel.
● Connect manifold with the catheter placed, and inject contrast medium with dose control syringe downward.
