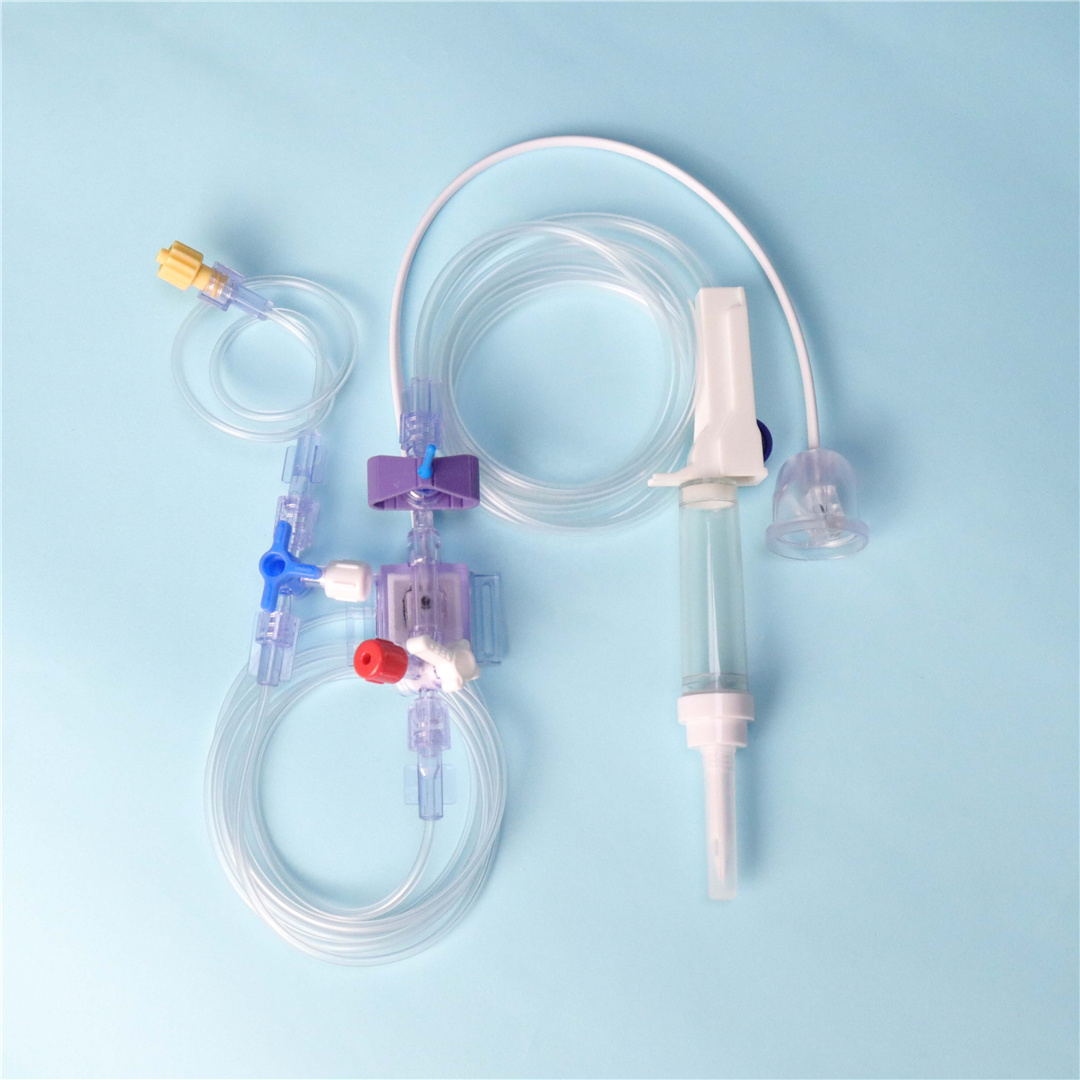

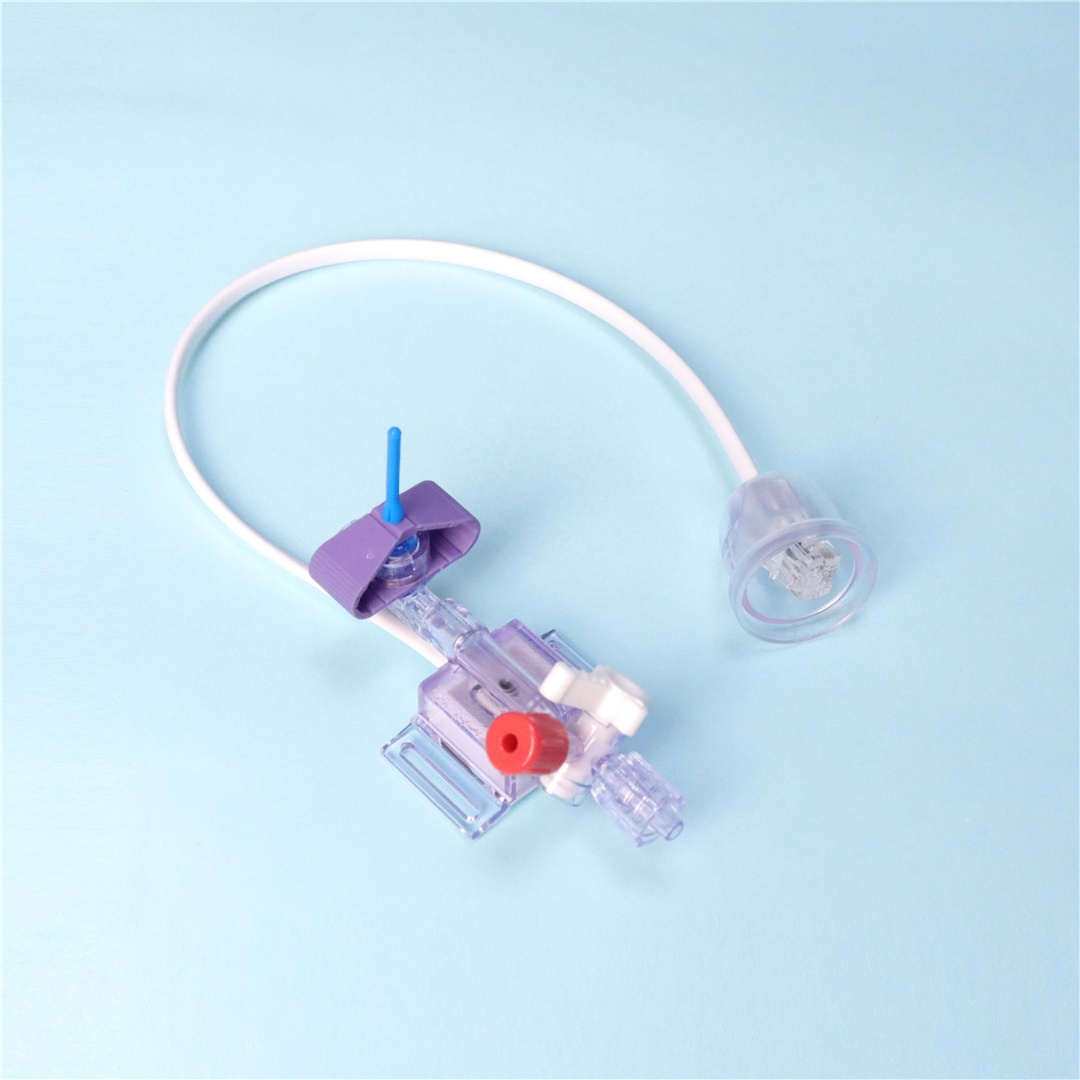

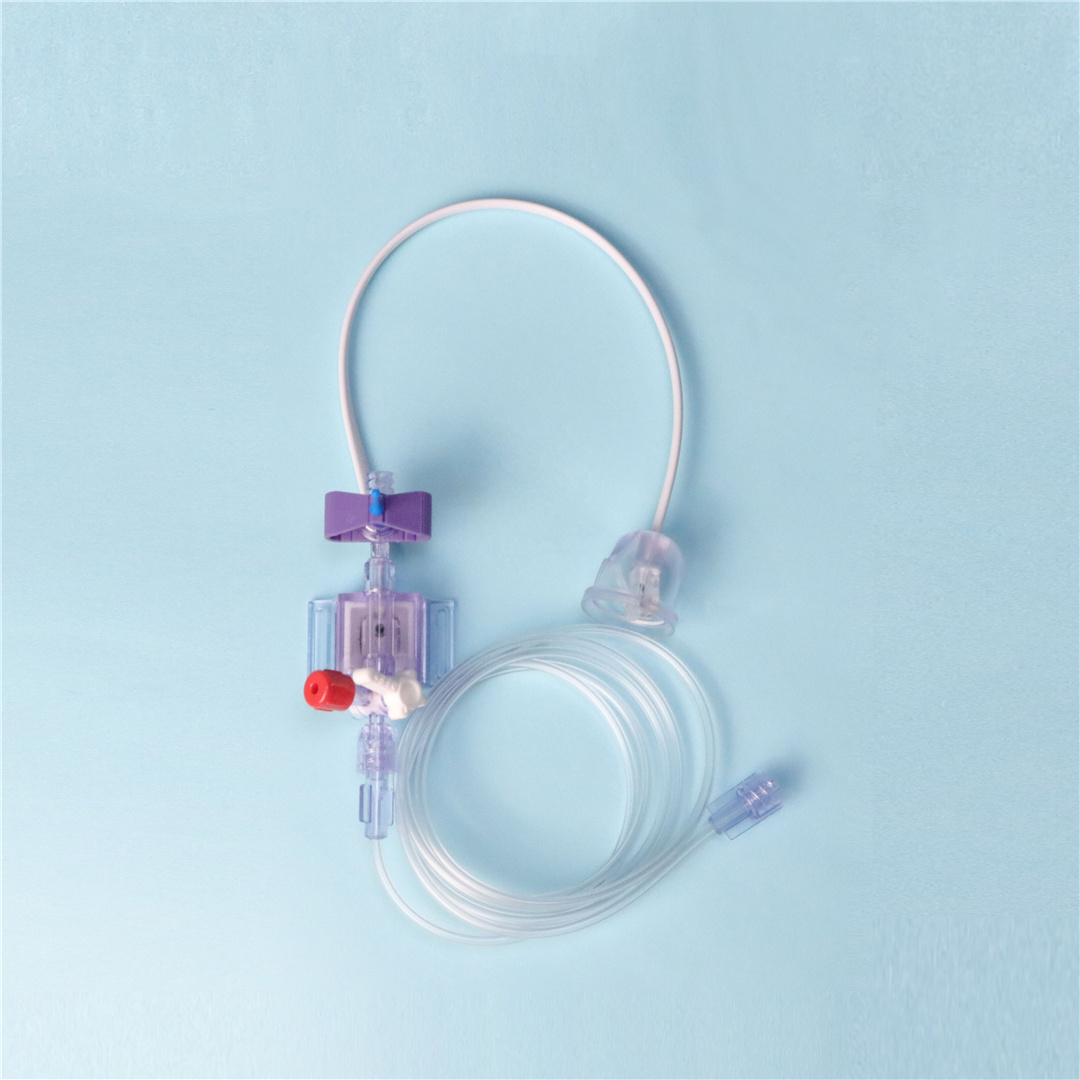

Disposable Blood Pressure Transducer
Product Features
● Accurate and consistent real-time invasive blood pressure measurement.
● Compatible with wide range of monitors.
● Clear fluid pathway enables priming during monitoring.

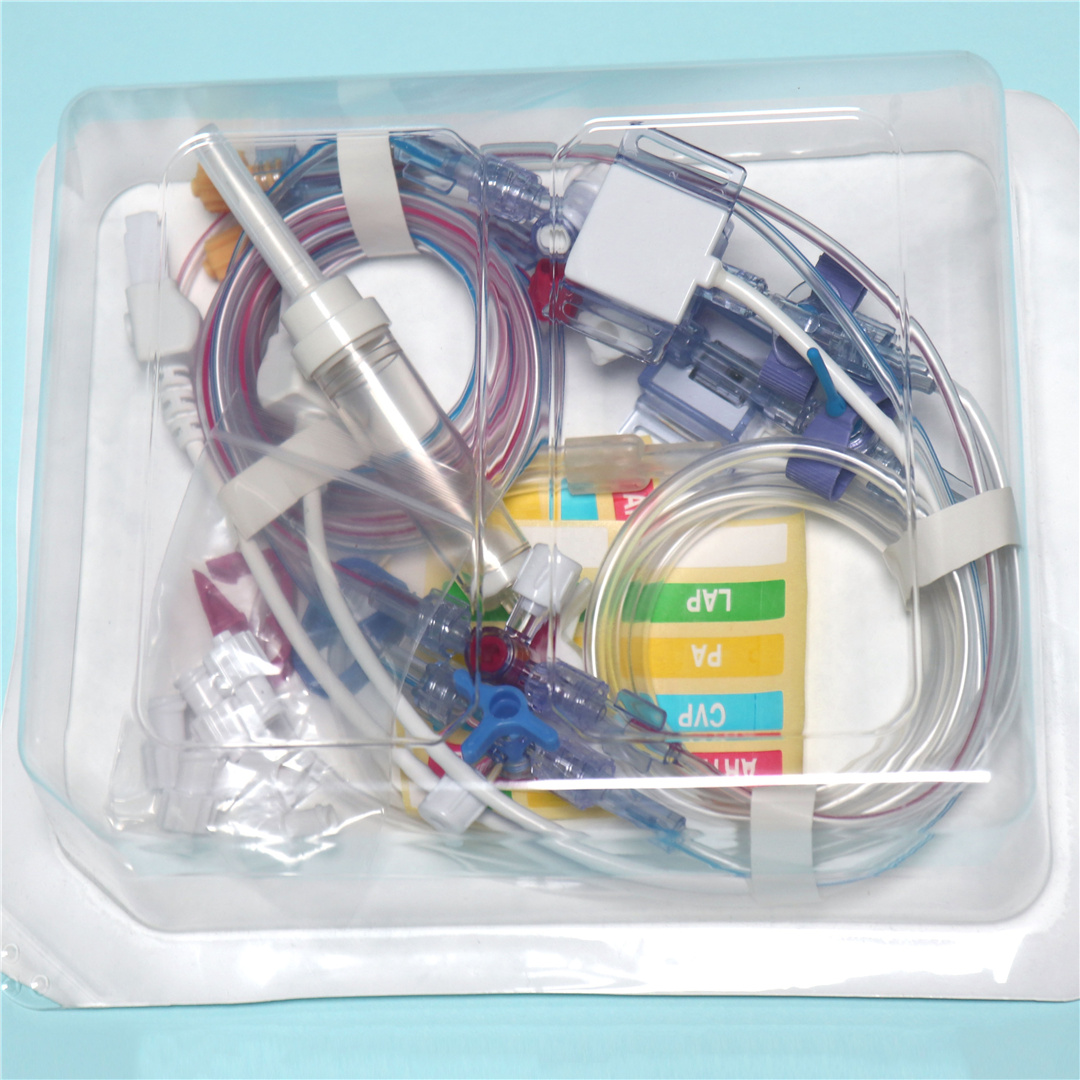

● Packing in blister box to reduce the damage during transportation and it is sterilized with ethylene oxide.
How it work
● Pressure Detection: The transducer is connected to a catheter or needle inserted into a patient's artery (e.g., radial artery). The blood pressure exerts force on a diaphragm inside the transducer.
● Signal Conversion: The diaphragm's movement is converted into an electrical signal using strain gauges or piezoelectric elements.
● Signal Processing: The electrical signal is amplified, processed, and displayed on a monitor as a continuous blood pressure waveform (systolic, diastolic, and mean arterial pressure).
Instruction for use
● Turn on the monitor before connecting the pressure transducer.
● Use disinfection measures to open the package, and confirm that all interfaces are securely sealed and accessories such as three-way stopcocks are in good working condition.
● All the ports of the stopcock should be covered with threaded caps with hole. After the pressure transducer is filled with heparin saline solution and the air bubbles are exhausted, replace the caps with non-hole threaded caps.
● Connect the pressure transducer to the monitor, and adjust the monitor to zero.
● Flush the tube with heparin saline, and drain the air in the tube.
● After all the tubes are filled with heparin saline, connect the pressure transducer to the human body.
product application
● Invasive Blood Pressure Monitoring: Provides real-time, accurate blood pressure readings, especially in critically ill patients or during surgery.
● Hemodynamic Monitoring: Helps assess cardiac output, vascular resistance, and fluid status.
Specifications and Models
| Single Channel Kit | Double Channel Kit | Three Channel Kit | |||
| Product No | Description | Product No | Description | Product No | Description |

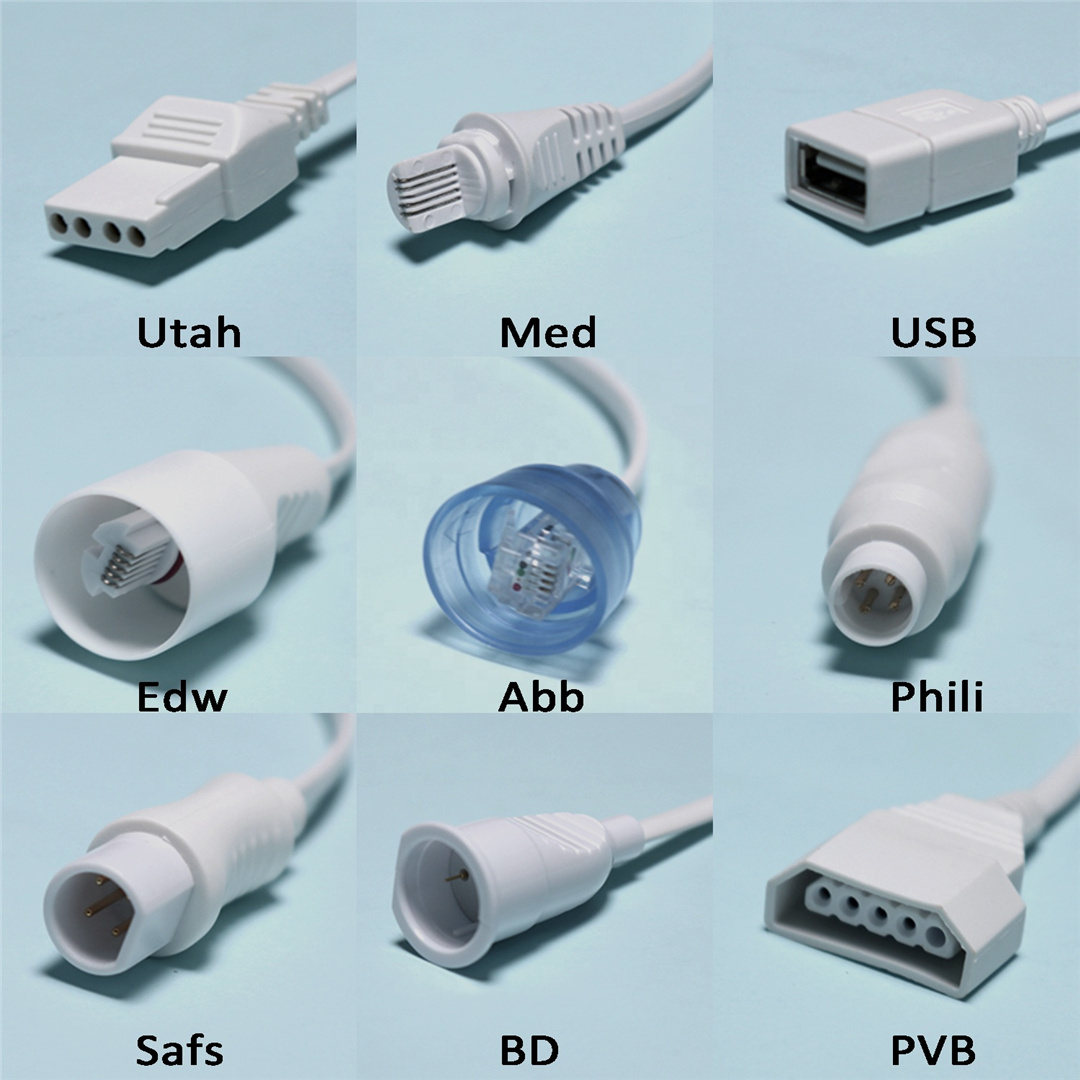

| 011001 | Abbott Connector | 012001 | Abbott Connector | 013001 | Abbott Connector |
| 011002 | Utah Connector | 012002 | Utah Connector | 013002 | Utah Connector |
| 011003 | Philips Connector | 012003 | Philips Connector | 013003 | Philips Connector |
| 011004 | BD Connector | 012004 | BD Connector | 013004 | BD Connector |
| 011005 | PVB Connector | 012005 | PVB Connector | 013005 | PVB Connector |
| 011006 | Medex Connector | 012006 | Medex Connector | 013006 | Medex Connector |
| 011007 | Edward Connector | 012007 | Edward Connector | 013007 | Edward Connector |
| 011008 | USB Connector | 012008 | USB Connector | 013008 | USB Connector |
| 011009 | Safsure Connector | 012009 | Safsure Connector | 013009 | Safsure Connector |
Product Details
