Tear Away Introducer Sheath
Product Features
● Peel-Away Design – Splits into two halves for easy removal.

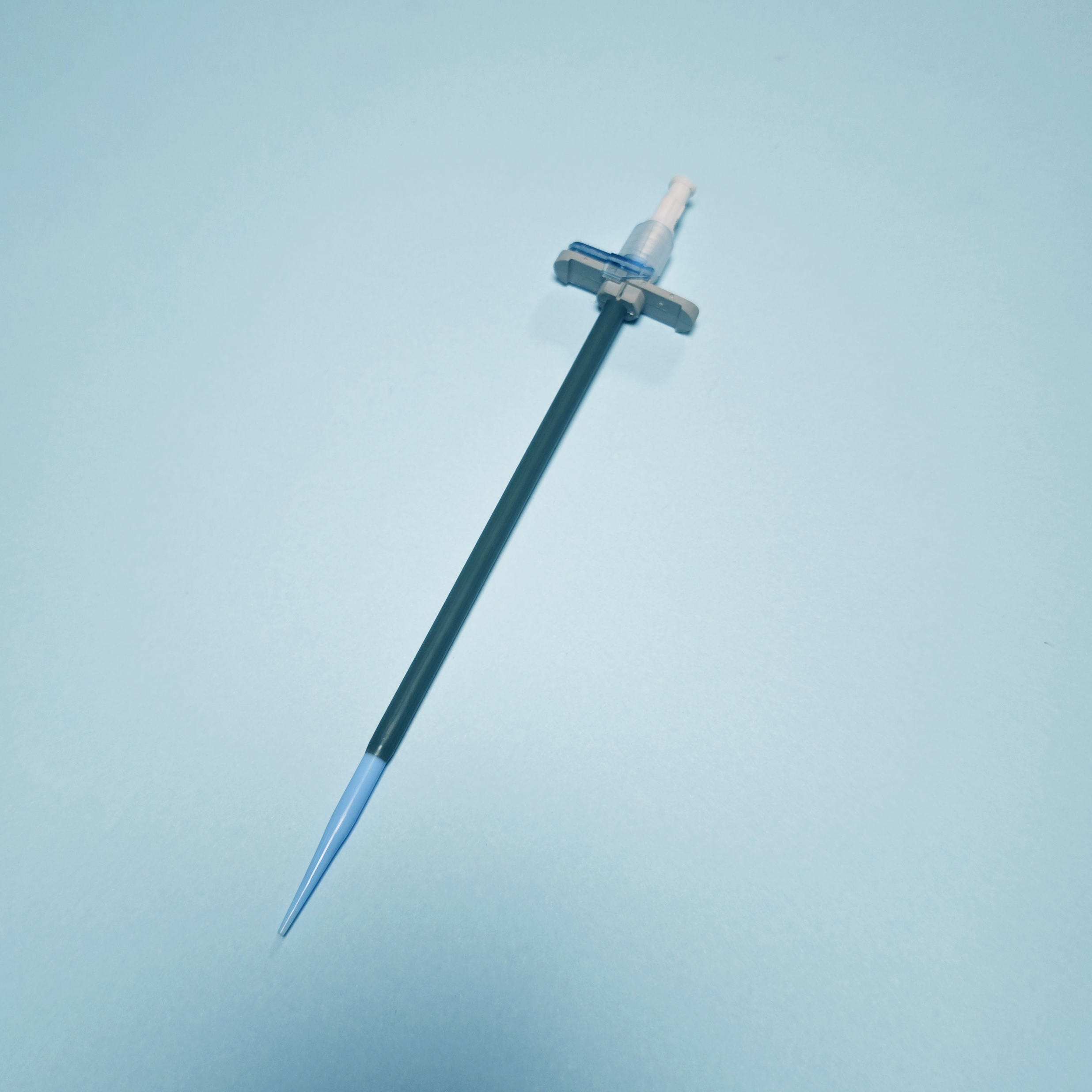

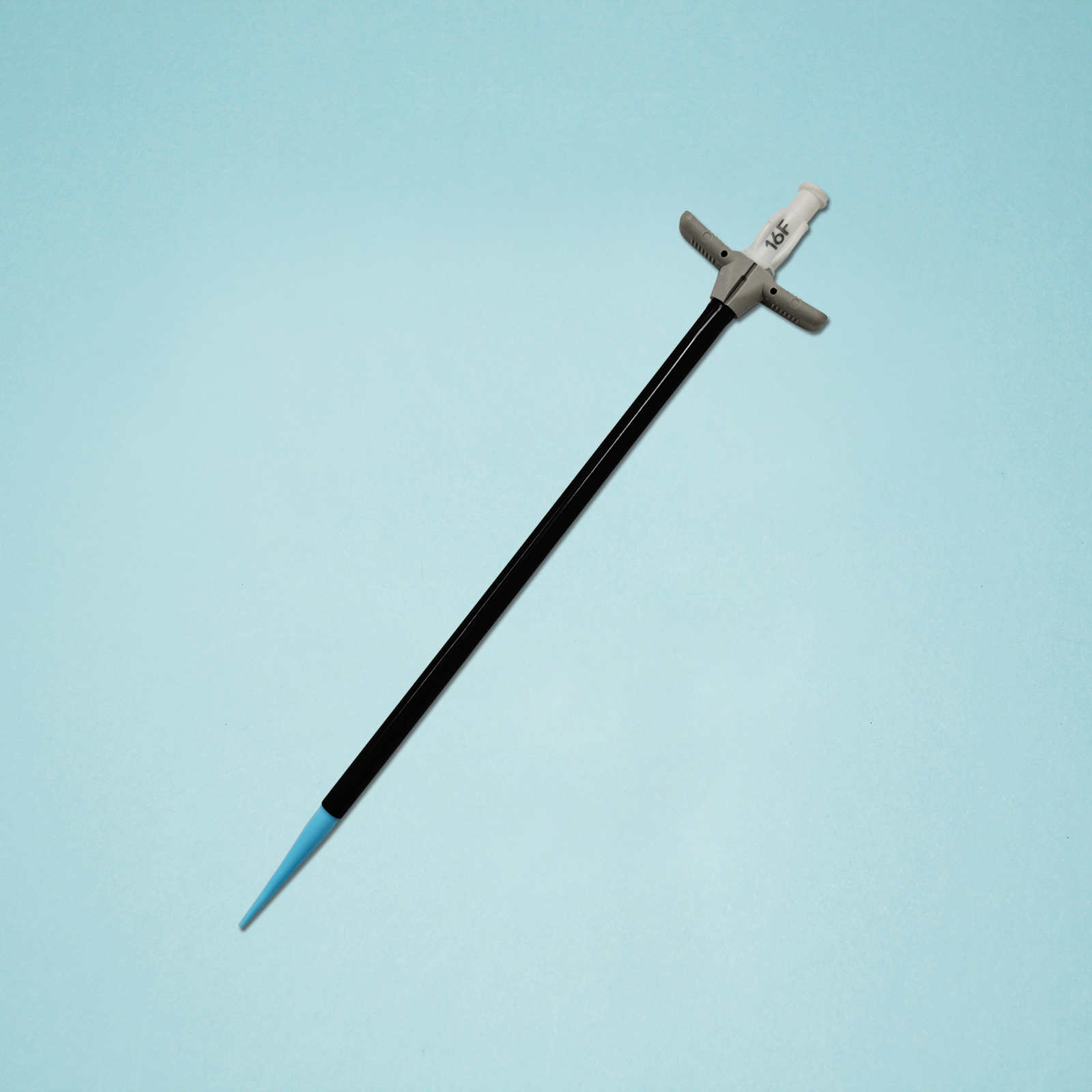

● Dilator & Sheath System – Combines an inner dilator (for smooth insertion) and an outer sheath (for catheter placement).

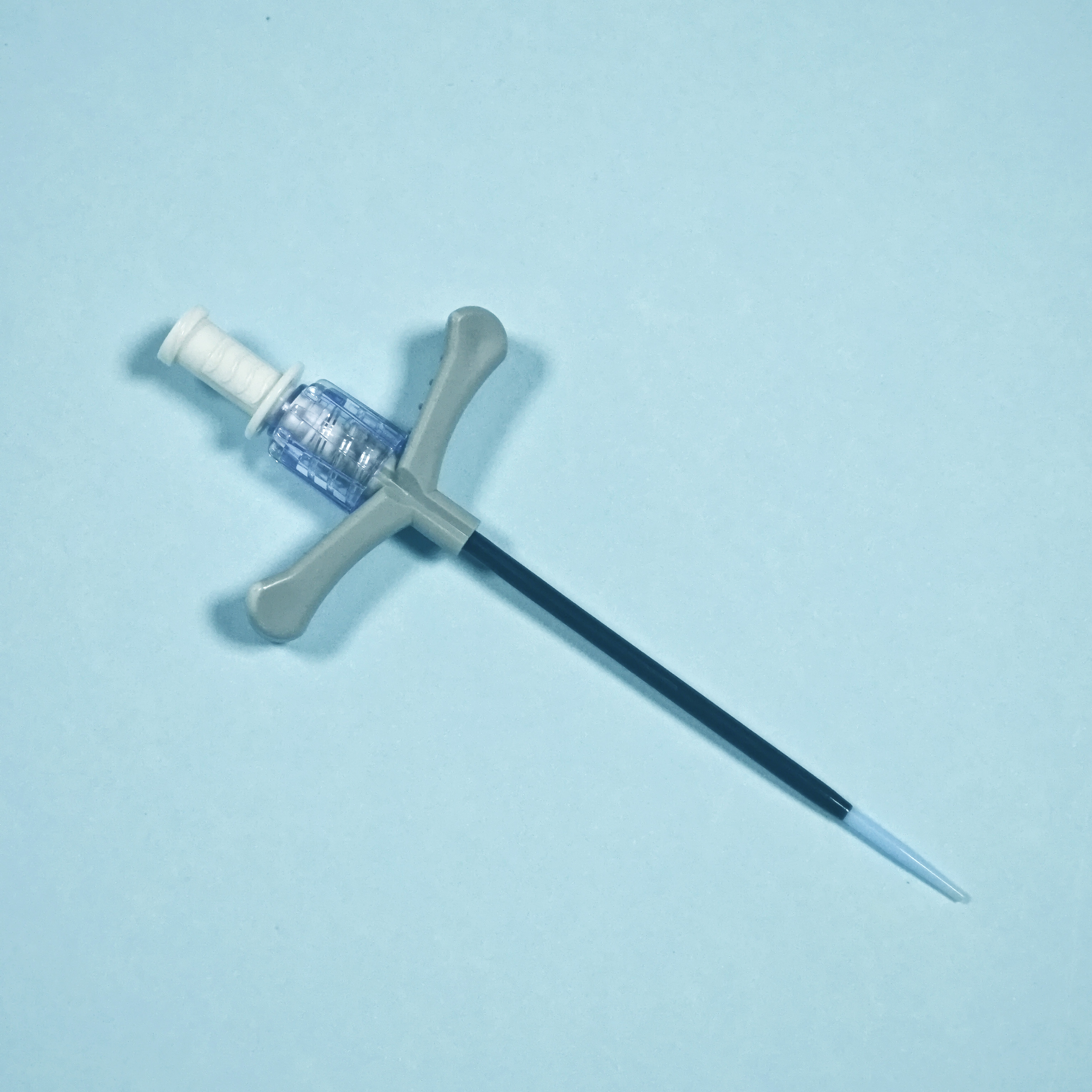

● Hemostatic Valve (Optional) – Some models include a valve to reduce blood loss.
● Radiopaque Markers – Enhances visibility under fluoroscopy.

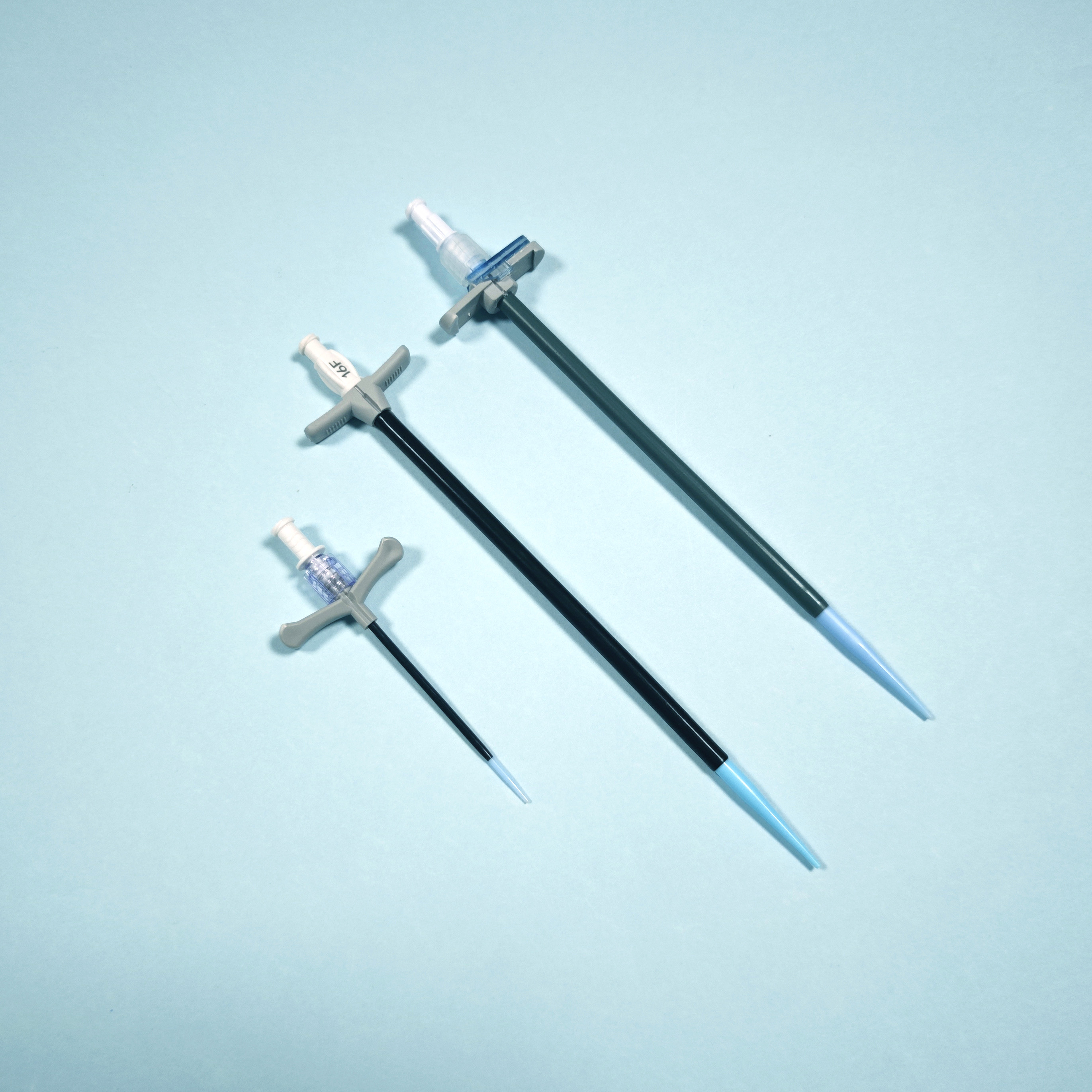

● Multiple Sizes – Ranges from 4Fr to 12Fr+ (for different catheter types).
Instruction for use
Insertion
● Access the vein/artery using the Seldinger technique (needle → guidewire).
● Advance the Tear-Away Sheath + Dilator over the guidewire.
● Remove the inner dilator and guidewire, leaving the sheath in place.
● Insert the catheter or device through the sheath.
Removal (Tear-Away Process)
● Hold the catheter securely in place.

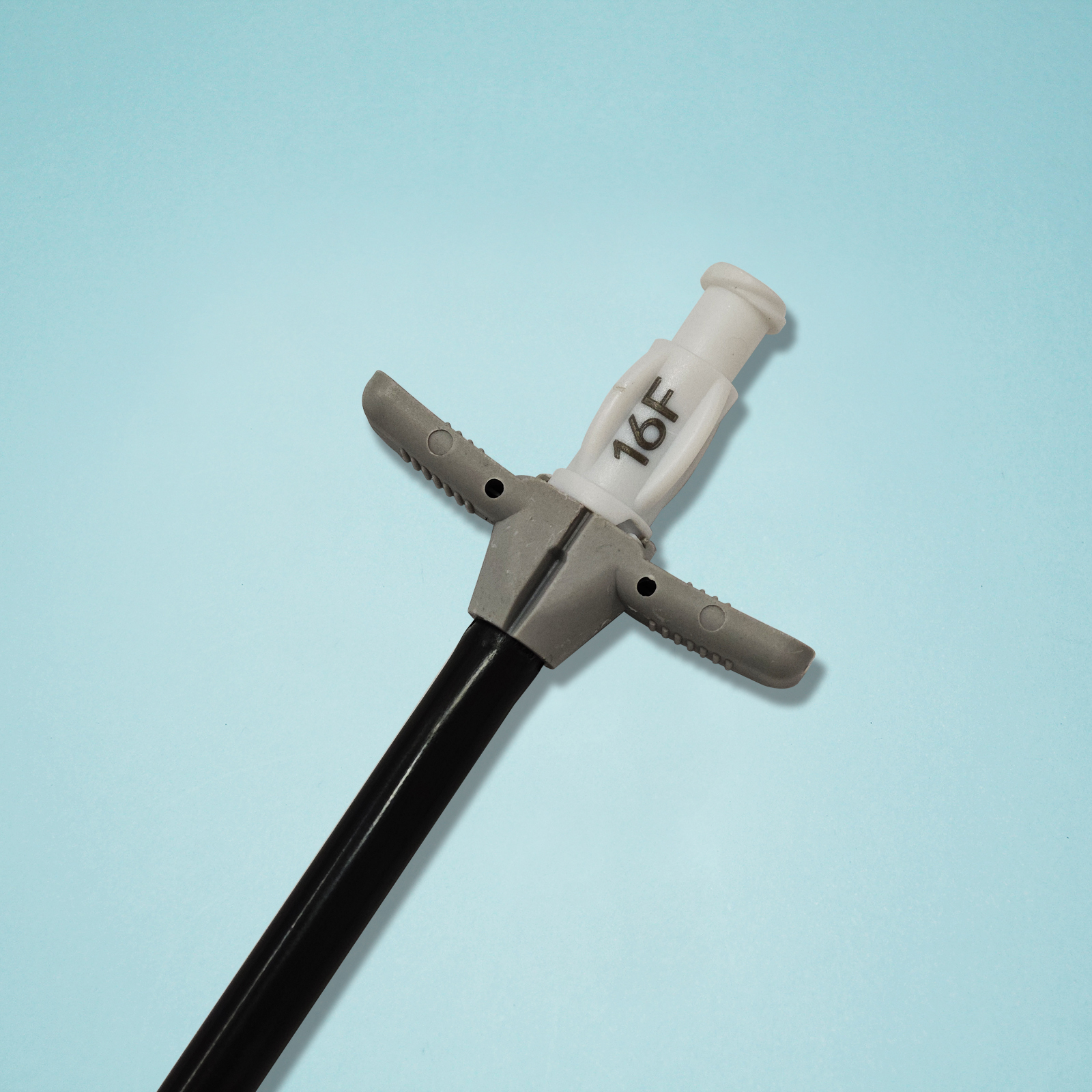

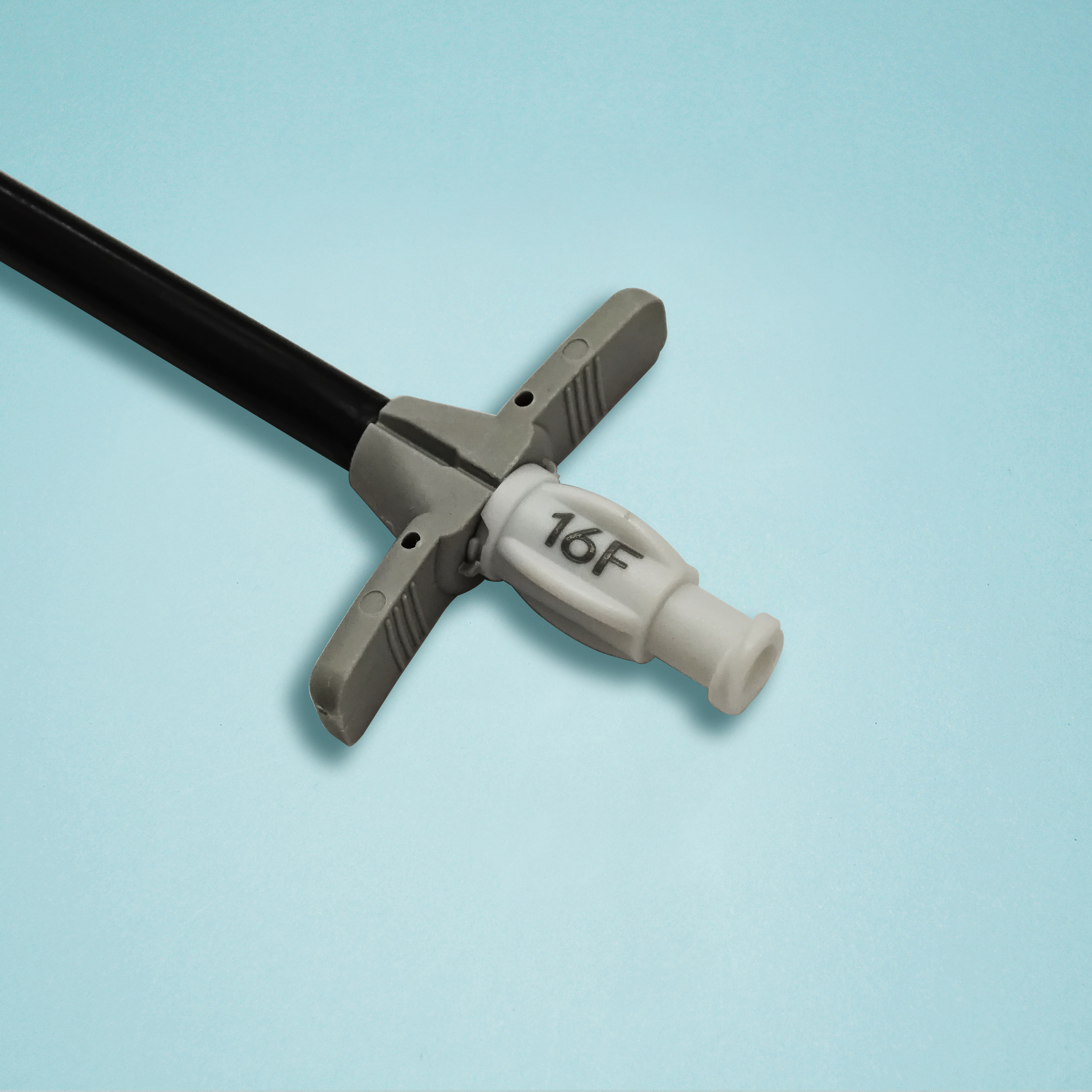

● Grasp the sheath’s two tabs and pull apart in opposite directions.
● The sheath splits lengthwise and is removed, leaving the catheter in position.
product application
● Central Venous Catheter (CVC) Placement-Used for PICC lines, dialysis catheters, and midlines.
● Pacing Lead Insertion (Cardiology)-Helps place pacemaker or defibrillator leads.
● Angiography & Interventional Radiology-Assists in introducing guidewires, microcatheters, or embolization coils.
● Neuraxial Procedures (Less common)-Occasionally used in epidural or spinal catheter placements.
Specifications and Models
| Product No | Size |
| 056001 | 4F |
| 056002 | 5F |
| 056003 | 6F |
| 056004 | 7F |
| 056005 | 8F |
| 056006 | 13F |
| 056007 | 15F |
| 056008 | 16F |
| 056009 | 16.5F |
