Ureteral Access Sheath
Product Features
● PTFE+stainless steel lining mesh+Pebax material.
● Hyper-slippery PVP coating,easy for insertion.
● Large inner lumen for the endoscope to enter smoothly.
INSTRUCTION FOR USE
● Prior to placement, activate the hydrophilic coating by removing the dilator from the Flexor sheath and immersing all components in sterile water or isotonic saline. This will allow the hydrophilic surface to absorb water and become lubricious, easing placement under standard conditions.
● Place a .035 inch (0.89 mm) or .038 inch (0.97 mm) diameter wire guide the desired length into the ureter to establish a working tract.

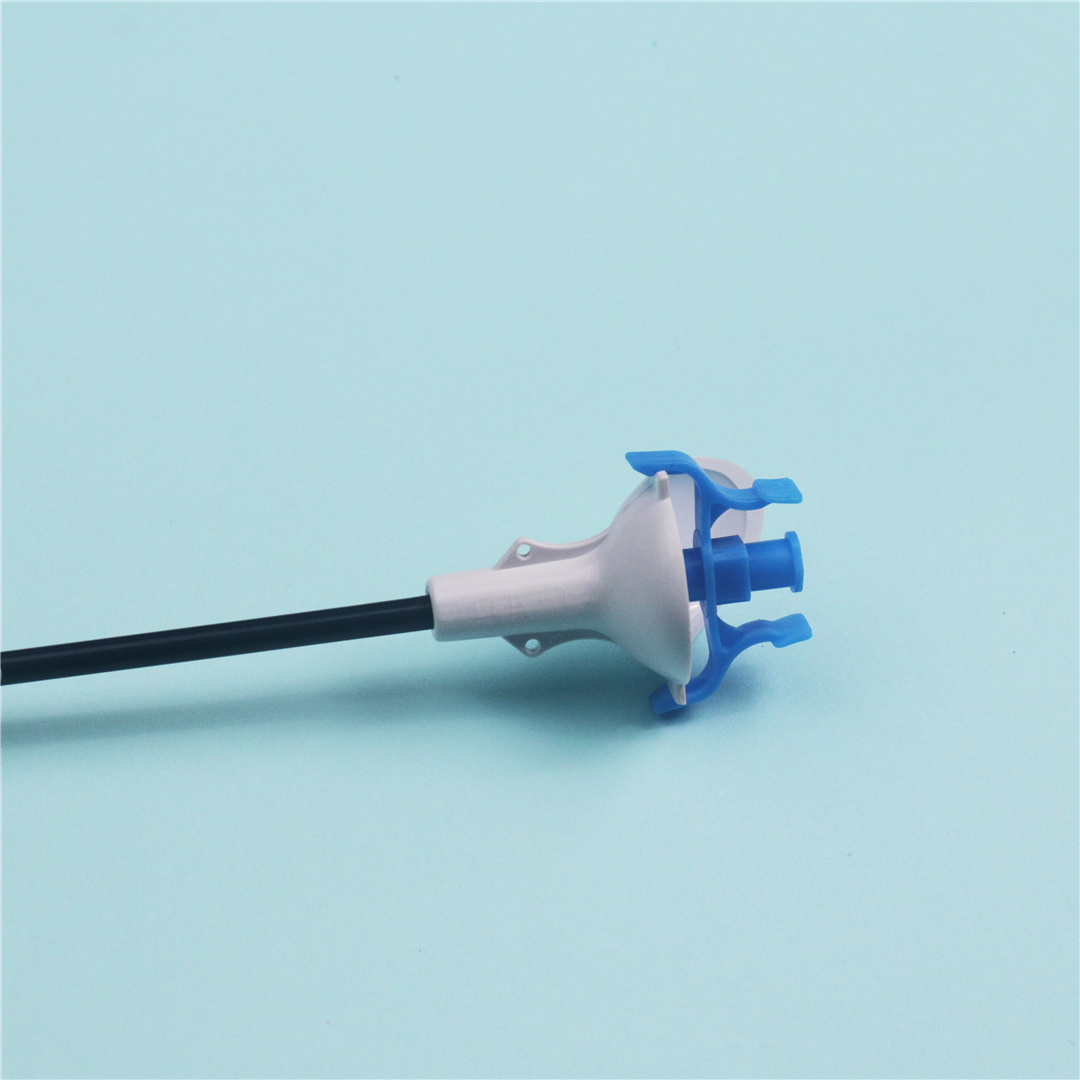

● Grasp the sheath just below the instrument adapter and advance the dilator/sheath assembly over the wire guide and into the ureter.
NOTE: Be sure the dilator is securely locked onto the instrument adapter, ensuring the dilator/sheath assembly can be placed as a single unit, allowing one-hand placement.
● Confirm the dilator/sheath assembly is properly placed via fluoroscopy.
● While holding the Flexor sheath in position, unlock the fitting and remove the dilator.
● Introduce the desired endoscope or instrument as needed.
NOTE: Suture may be utilized to secure the adapter externally. Suture holes are conveniently located on the instrument adapter.
Product application
● Protects the Ureter: Reduces the risk of trauma during instrument insertion and removal.
● Improves Efficiency: Provides a stable pathway, making procedures faster and more effective.
● Enhanced Visualization: Allows for continuous irrigation, improving visibility during surgery.
● Patient Safety: Minimizes the risk of ureteral injury and post-procedure complications.
● Versatility: Suitable for a wide range of endourological procedures.
Specifications and Models
| Product No | Model |
| 301001 | 10Fx35cm |
| 301002 | 10Fx45cm |
| 301003 | 11Fx35cm |
| 301004 | 11Fx45cm |
| 301005 | 12Fx35cm |
| 301006 | 12Fx45cm |
| 301007 | 13Fx35cm |
| 301008 | 13Fx45cm |
| 301009 | 14Fx35cm |
| 301010 | 14Fx45cm |
