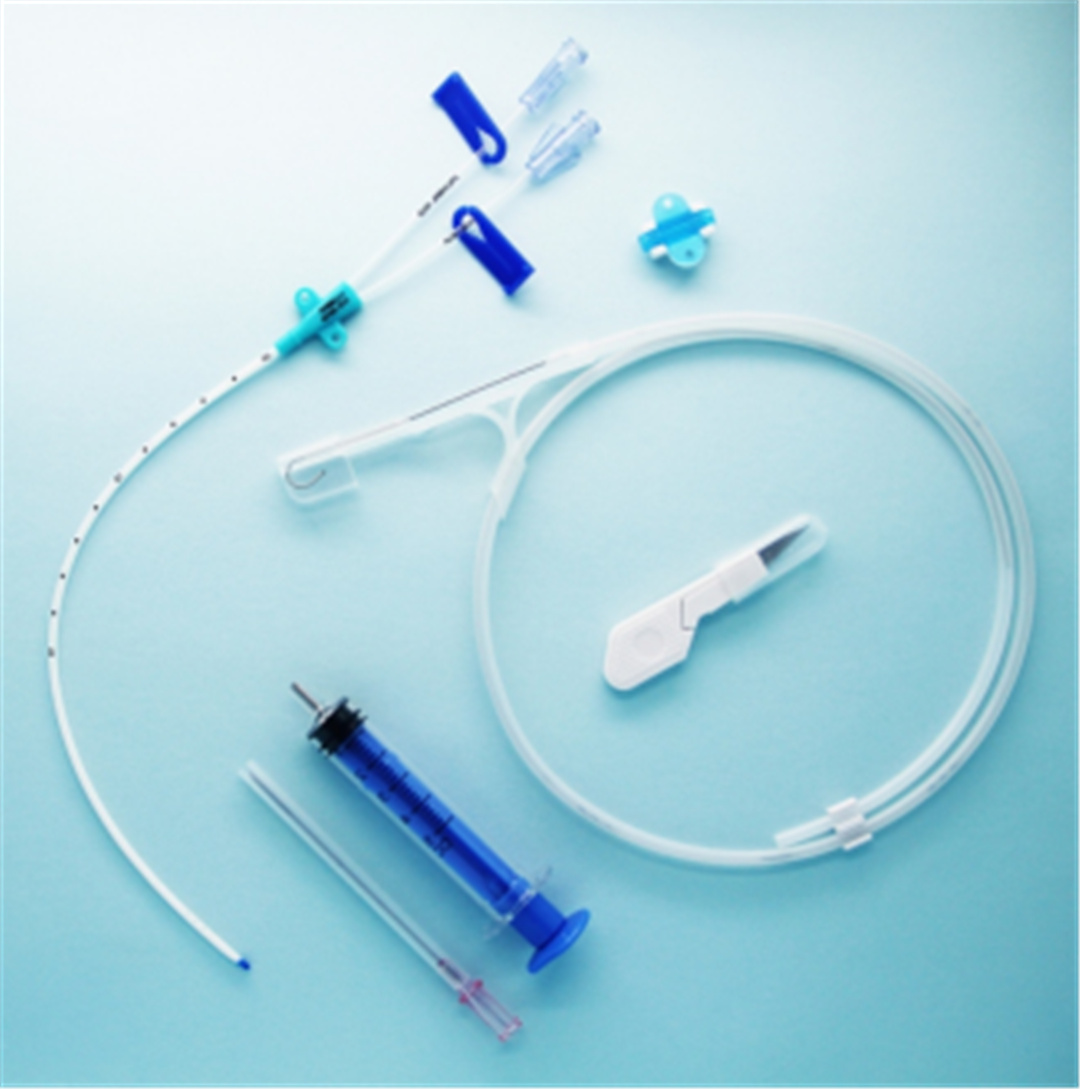

Center Venous Catheter
Product Features
● Movable clamp allows anchorage at puncture site regardless of depth of catheter, which minimizes trauma and irritation to the puncturing site.
● Depth marking assists in accurate placement of central venous catheter from the right or left subclavian or jugular vein.
● Soft tip reduces trauma to vessel, minimizing vessel erosion, hemothorax and cardiac tamponade.
● Single, double, triple lumen is available for choice.
Instruction for use
PRE-PROCEDURE PREPARATION
● Patient Assessment: Verify indication and vein patency (ultrasound recommended).
● Equipment: Sterile CVC kit (catheter, guidewire, dilator, sutures), ultrasound machine, sterile drapes, antiseptic (chlorhexidine/alcohol), local anesthetic (1–2% lidocaine).
INSERTION PROCEDURE
● Positioning & Sterilization: Place patient in Trendelenburg (jugular/subclavian) or supine (femoral), sterilize skin with >0.5% chlorhexidine.
● Vein Access: Use ultrasound-guided Seldinger technique.
① Insert needle, aspirate blood to confirm vein.
② Thread guidewire, remove needle.
③ Dilate tract, advance catheter over wire.
④ Remove wire, confirm blood return.
● Securement & Dressing: Suture catheter + apply sterile transparent dressing. Confirm placement via CXR (tip at SVC/RA junction).
POST-INSERTION CARE
● Flushing: Heparinized saline (for intermittent use). 0.9% saline (continuous infusions).
● Dressing Changes: Every 7 days (transparent) or 2 days (gauze).
● Complication Monitoring: Pneumothorax, infection, thrombosis.
Product application
● Critical Care: Administering medications, fluids, or vasopressors in intensive care units (ICUs).
● Chemotherapy: Delivering chemotherapy drugs or other long-term medications.
● Parenteral Nutrition: Providing nutritional support for patients unable to eat.
● Hemodialysis: Serving as temporary vascular access for dialysis (e.g., non-tunneled CVCs).
● Monitoring: Measuring central venous pressure (CVP) in critically ill patients.
Specifications and Models
| Single Lumen Catheter | Double Lumen Catheter | Triple Lumen Catheter | |||
| Product No | Model | Product No | Model | Product No | Model |
| 021001 | 20G | 022001 | 4F | 023002 | 5.5F |
| 021002 | 18G | 022002 | 5F | 023003 | 7F |
| 021003 | 16G | 022003 | 7F | 023004 | 8.5F |
| 021004 | 14G | 022004 | 8F | ||
