Stone Retrieval Basket-3 Wire
Product Features

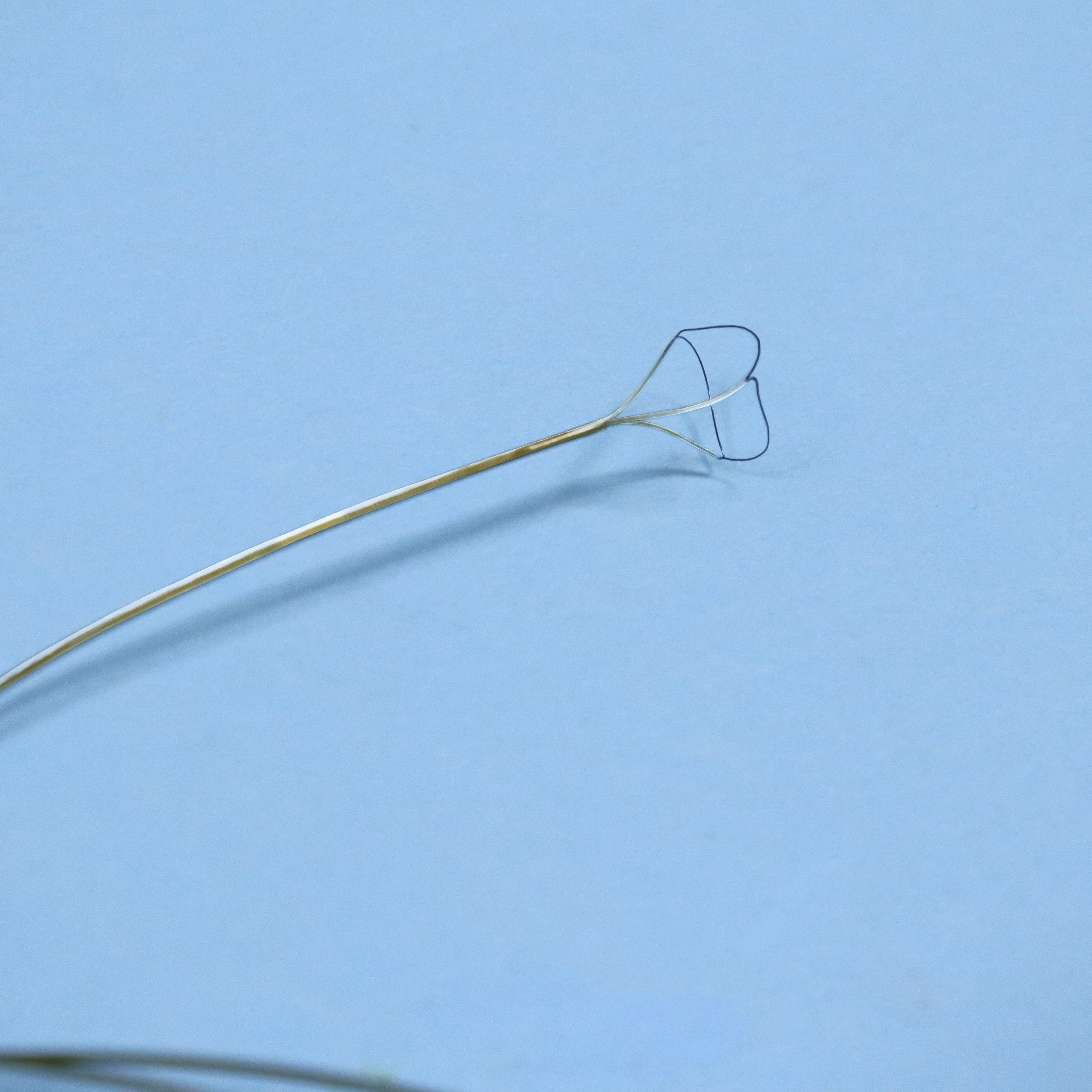

● Three-Wire Construction: The basket is formed from three flat, flexible wires that are joined at the base (distal end) and the handle (proximal end).
● Material: Typically made of nitinol. Nitinol is prized for its superelasticity and shape memory, meaning the basket can be constrained into a straight, narrow catheter, and upon deployment, it will return to its pre-formed basket shape without deformation.
● Radiopaque Markers: The tips of the basket wires and sometimes the sheath are radiopaque, making them visible under fluoroscopy (X-ray) to guide the surgeon.
● Handle Mechanism: An ergonomic handle allows the surgeon to precisely control the basket.
Application scenarios
● Ureteral Stones: The most common application, for stones located in the mid and distal ureter.
● Small Renal Stones: For stones located within the kidney that are accessible and small enough to be safely removed.
● Following Lithotripsy: To retrieve fragments of a larger stone after it has been broken up with a laser or other energy source.
Instruction for use
● Access and Visualization: A thin, flexible ureteroscope is passed through the urethra and bladder into the ureter until the stone is visualized.
● Basket Insertion: The closed basket, contained within its sheath, is advanced through the working channel of the ureteroscope.
● Deployment: The basket is advanced beyond the stone. The surgeon then retracts the outer sheath, allowing the basket to open fully in the ureter.
● Engagement: The basket is manipulated (often by gently rotating it) to ensnare the stone within its wires.
● Capture and Retrieval: Once the stone is captured, the sheath is advanced, partially closing the basket around the stone. The entire unit (scope, basket, and stone) is then withdrawn from the body.
Specifications and Models
| Product No | Model | Sheath Outedr Diameter (F) | Working Length (cm) | Basket Width in Opened Condition(mm) | Material |
| 431001 | TN-1.7Fx90cm(8mm) | 1.7F | 90cm | 8mm | PI |
| 431002 | TN-1.7Fx120cm(8mm) | 1.7F | 120cm | 8mm | PI |
| 431003 | TN-1.7Fx90cm(11mm) | 1.7F | 90cm | 11mm | PI |
| 431004 | TN-1.7Fx120cm(11mm) | 1.7F | 120cm | 11mm | PI |
| 431005 | TN-1.9Fx90cm(8mm) | 1.9F | 90cm | 8mm | PI |
| 431006 | TN-1.9Fx120cm(8mm) | 1.9F | 120cm | 8mm | PI |
| 431007 | TN-1.9Fx90cm(11mm) | 1.9F | 90cm | 11mm | PI |
| 431008 | TN-1.9Fx120cm(11mm) | 1.9F | 120cm | 11mm | PI |

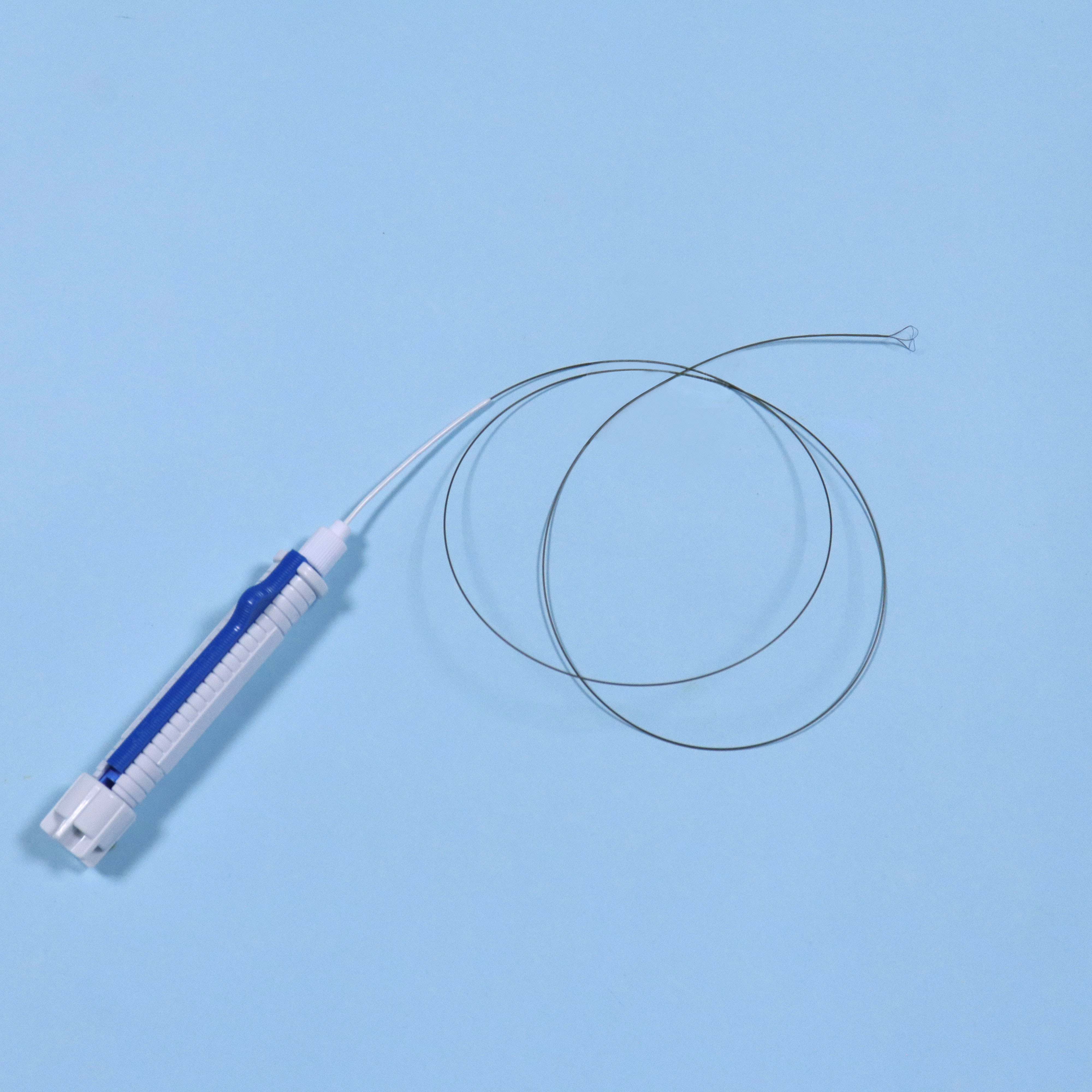

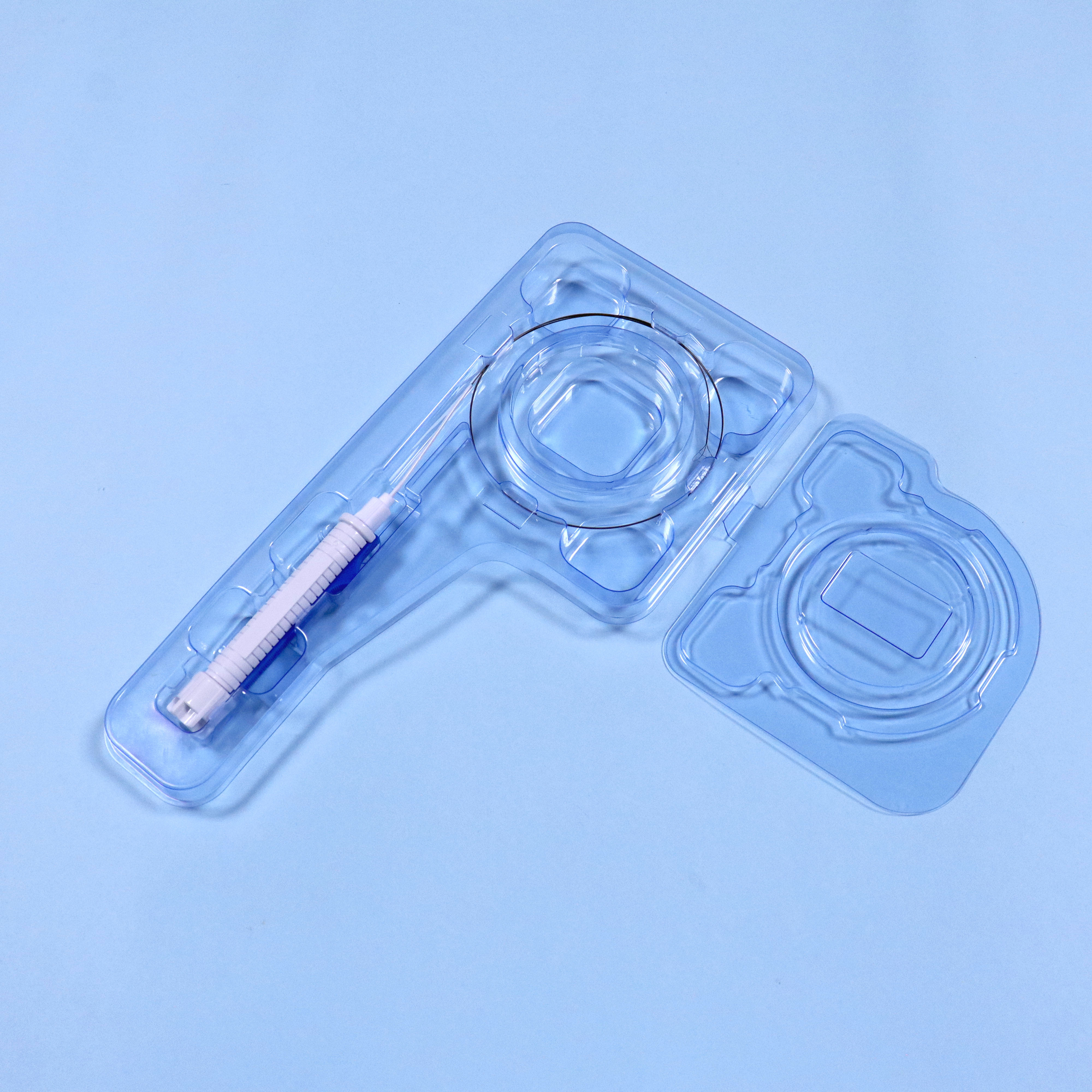

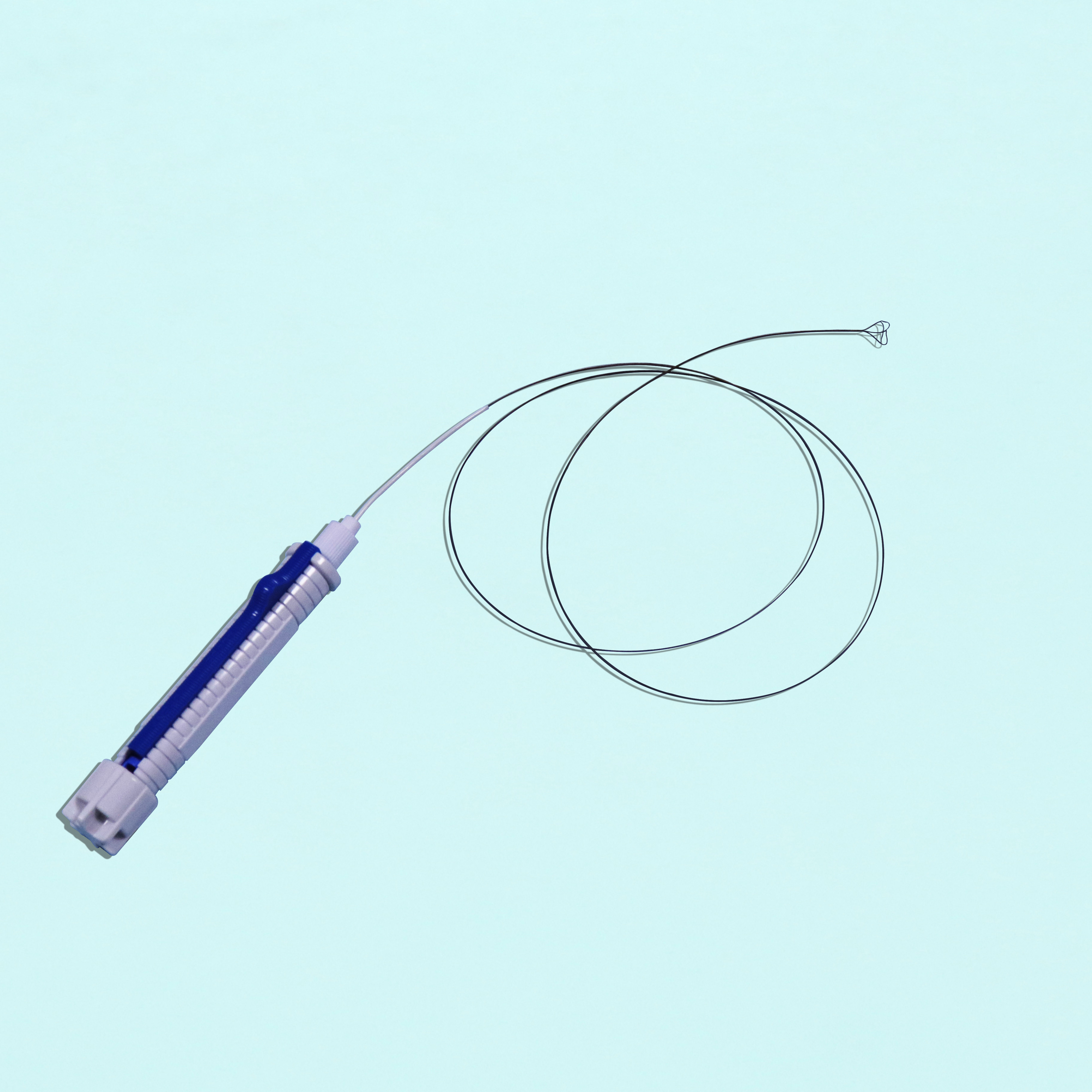

Product Details
